STPS30M100SFP

Name: STMicroelectronics STPS30M100SFP
Brand: STMicroelectronics
SKU: 511-STPS30M100SFP
Price: 2.76 SGD
Availability: InStock

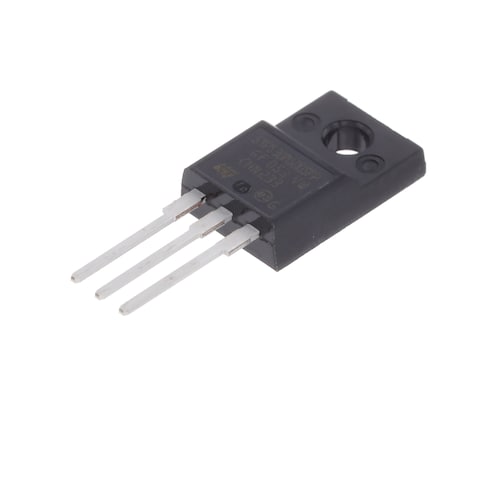

Images are for reference only
See Product Specifications

Mouser No:

511-STPS30M100SFP

Mfr. No:

STPS30M100SFP

Mfr.:

STMicroelectronics

Description:

Schottky Diodes & Rectifiers 100V 30A

Complete Your Design

Datasheet:

STPS30M100SFP Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1,309

Stock:: 1,309 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

$-.--

Ext. Price:

$-.--

Est. Tariff:

Pricing (SGD)

Qty.	Unit Price	Ext. Price
	$2.76	$2.76
	$1.19	$11.90
	$1.18	$118.00
	$0.938	$469.00
	$0.827	$827.00
	$0.825	$1,650.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	Schottky Diodes & Rectifiers
RoHS:
Product:	Schottky Rectifiers
Mounting Style:	Through Hole
Package/Case:	TO-220FP-3
Configuration:	Single Dual Anode
Technology:	Si
If - Forward Current:	30 A
Vrrm - Repetitive Reverse Voltage:	100 V
Vf - Forward Voltage:	800 mV
Ifsm - Forward Surge Current:	300 A
Ir - Reverse Current:	175 uA
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 150 C
Series:	STPS30M100S
Packaging:	Tube
Brand:	STMicroelectronics
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	SG
Product Type:	Schottky Diodes & Rectifiers
Factory Pack Quantity:	1000
Subcategory:	Diodes & Rectifiers
Unit Weight:	2.300 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STPS30M100SFP Datasheet (PDF)

PCN

CNHTS:: 8541100000
CAHTS:: 8541100090
USHTS:: 8541100080
JPHTS:: 854110090
KRHTS:: 8541109000
TARIC:: 8541100000
MXHTS:: 8541100101
ECCN:: EAR99

Standard Products

STMicroelectronics Standard Products are a broad range of industry-standard and drop-in replacements for the most popular general-purpose analog ICs, discretes, and serial EEPROMs. The Standard Products are manufactured to the highest quality standards with many AECQ-qualified for automotive applications. A comprehensive set of STMicroelectronics design aids, including SPICE, IBIS models, and simulation tools, is available to make adding to a design-in easy.
