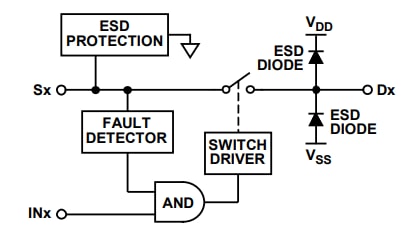

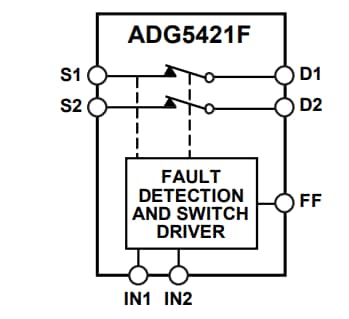

Analog Devices Inc. ADG5421F Dual SPST Switch is a low-on-resistance switch with overvoltage protection, power-off protection, and overvoltage detection on the source pins. This switch remains in the off condition when no power supplies are present, and the switch inputs have high impedance. The ADG5421F switch turns on with a Logic 1 input and conducts equally well in both directions. This switch features up to ±60V overvoltage fault and power-off protection on the S1 and S2 pins. The ADG5421F switch is latch-up immune under all circumstances. Typical applications include analog input/output modules, process control/distributed control systems, data acquisition, instrumentation, avionics, automatic test equipment, communication systems, and relay replacement.
Features
Over-Voltage Protection (OVP)
Power-off protection
Known state without digital inputs present
Trench isolation guards against latch-up
Turns on with a Logic 1 input
Conducts equally well in both directions
Applications
Analog input and output modules
Process control and distributed control systems
Data acquisition
Instrumentation
Avionics
Automatic test equipment
Communication systems
Relay replacement
Specifications
Up to ±60V overvoltage fault protection on the S1 and S2 pins
