Kingbright APTD1608 0603 SMD LEDs

The Kingbright APTD1608 0603 SMD LEDs are surface-mounted, dome lens Light Emitting Diodes with an industry standard 1.6mm x 0.8mm footprint. The APTD1608 LEDs feature low power consumption, a tight 60° viewing angle, and a Moisture Sensitivity Level of MSL-3. The APTD1608 LEDs are available in Blue, Green, Orange, Red, White, and Yellow, and are Pb-free and RoHS compliant.

Features

  • Compact 0608 package; 1.6mm x 0.8mm x 0.95mm thickness (LxWxH)
  • Low power consumption
  • 60° viewing angle
  • Available in Blue, Green, Orange, Red, White, and Yellow
  • Moisture sensitivity level : MSL-3
  • RoHS compliant

Applications

  • Signage
  • Appliance indicators
  • Interior and exterior automotive lights
  • Backlighting
  • Wearable and portable devices
  • Healthcare applications

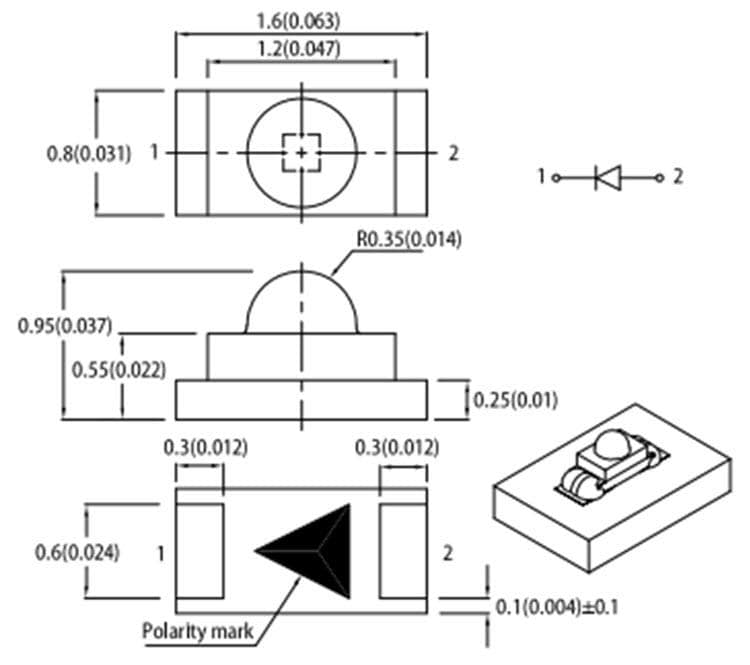

Package Dimensions

Kingbright APTD1608 0603 SMD LEDs
