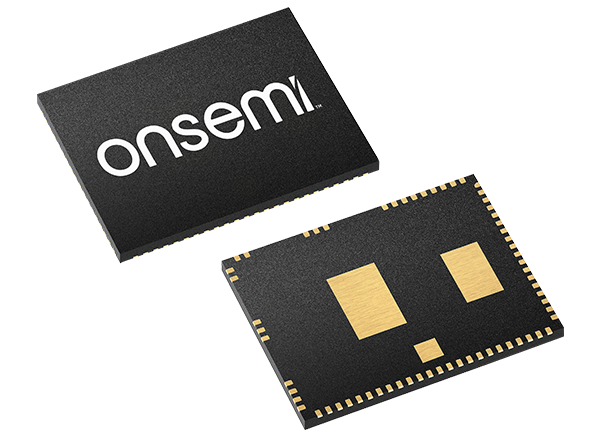

onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller

onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller is a 3-phase BLDC configurable motor control system. The controller integrates an ultra-low-power optimized Arm® Cortex-M0+ microcontroller (Nebo-40-64), three sense amplifiers, and a reference amplifier (NCS20034). The device has three bootstrap diodes and a high-voltage gate driver for high-speed operation. The ECS640A can drive MOSFETs and IGBTs operating up to 600V (FAN73896).

Features

  • Arm® Cortex-M0+ (Nebo-40-64)
    • 40MHz clock frequency
    • 8kB RAM
    • 64kB flash memory
  • 600V gate driver (FAN73896)
    • 350mA/650mA sourcing/sinking current driving capability
  • 4 sense amps for current sensing (NCS20034)
  • Integrated bootstrap diodes
  • Communication I2C, UART, and SPI
  • Firmware available, sensorless direct torque and flux control
  • 1.8W max. power dissipation
  • -40°C to +105°C temperature range
  • Lead free

Applications

  • Three-phase brushless DC (BLDC) sensorless motor control
  • Three-phase brushless DC (BLDC) sensor based motor control

Videos

{"PlayerType":"Video","BrightcoveId":"6346400518112"}

Block Diagram

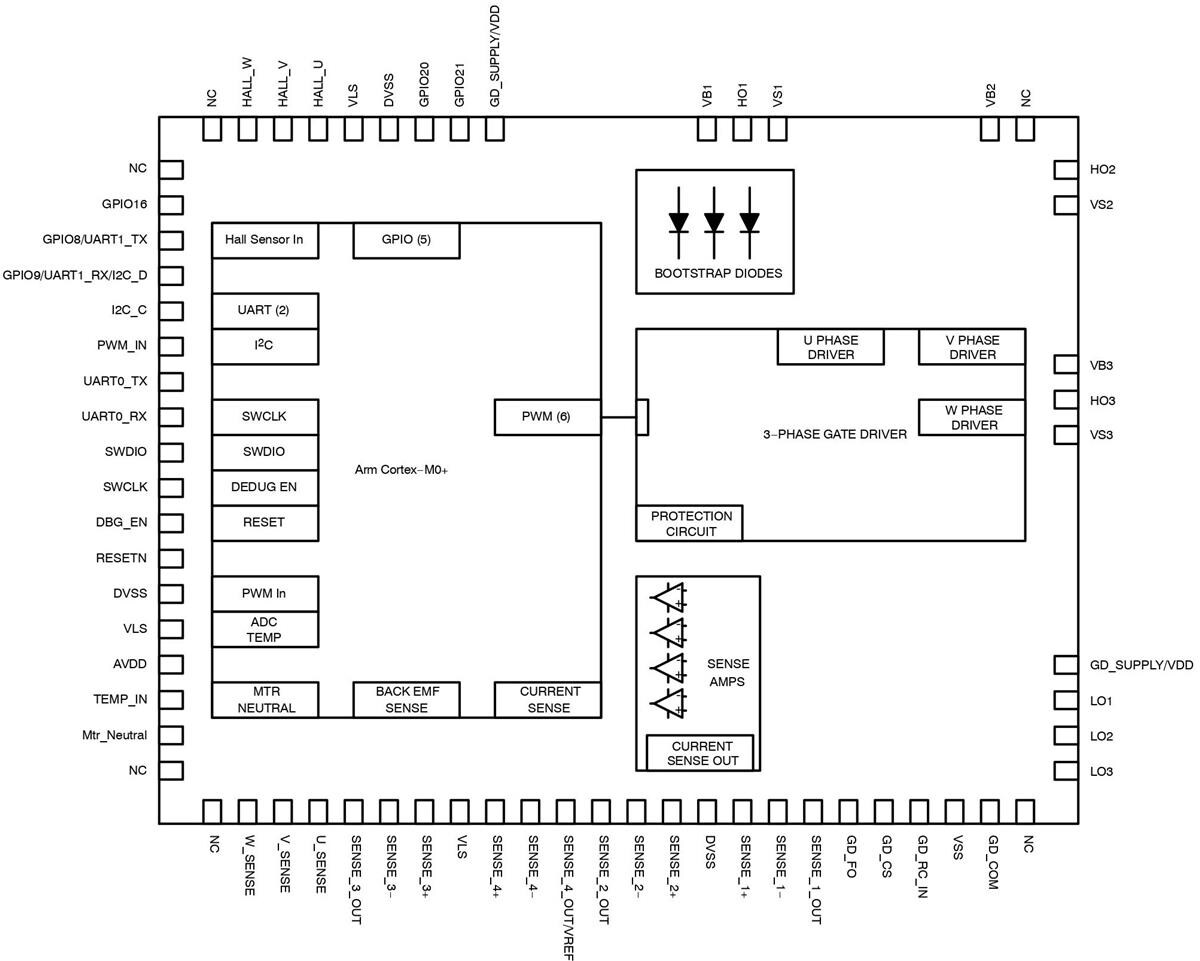

Block Diagram - onsemi ECS640A Sensorless BLDC ecoSpin Motor Controller
